| All-New Transit V362 Petrol Manual Ambulance |
| Color: White/Red |
| Beifang Brand ND5030XJHM-X6 |
| JMC Transit V362 Complete Gasoline Vehicle |
| Chassis Vehicle Technical Parameters |
| Model: JX6533PM-M6 |
| Seating Capacity (External Marking): 7-9 |
| Gross Vehicle Mass (kg): 3300 |
| Wheelbase (mm): 3300 |
| Front Track (mm): 1736 |
| Rear Track (mm): 1720 |
| Approach Angle / Departure Angle: 21°/24° |
| Transmission: Manual Gearbox |
| Overall Dimensions (mm L×W×H): 5500×2040×2390, 2430 |
| Steering: Hydraulic Pump Power-Assisted Steering |
| Front Suspension: MacPherson Independent Suspension |
| Rear Suspension: Leaf Spring Dependent Suspension |
| Brake System: Bosch 9.1 ABS+EBD, Front and Rear Disc Brakes |
| Tyre Spec: 215/65R16C |
| Engine: Inline 4-cylinder Turbocharged Intercooled Direct Injection Gasoline Engine |
| Engine Model: ECOBOOST4G20E6L |
| Emission Standard: China National VI Emission Standard |
| Displacement (L): 1.997 |
| Max Power (kW): 162 |
| Max Torque (Nm): 300 |
| Maximum Speed (km/h): 170 |
| Vehicle Standard Configuration |
| Power Windows |
| Central Locking System |
| Automatic Reversing Camera Display Screen |
| Original Factory Air Conditioner for Driving Cab |
| On-board Microcomputer Central Controller for Driving Cab Intelligent Power Management System (Manages power consumption of the whole vehicle, automatic charging, ensures the engine starting battery has sufficient power at all times) Matching High-performance Maintenance-free Equipment Battery |
| 1 set of 10-meter mobile extension cable with plug for 220V/15A external power socket |
| 1 piece of 220V/15A waterproof 3-pin flat external power socket with protective cover |
| 1 piece of external working light for ambulance on each left and right side of the roof |
| 2 pieces of outdoor working lights mounted on vehicle roof |
| Rear door foot step |
| Alarm & warning light control buttons installed in driving cab |
| 1 set of roof-mounted siren with standard ambulance warning tone |
| 1 set of 100W external loudspeaker integrated inside the siren |
| 2 pieces of LED blue warning strobe lights installed on vehicle front |
| 1 piece of long-row blue double-flash warning light mounted on front roof |
| 2 rectangular LED blue warning strobe lights on left roof side, another 2 on right roof side |
| 2 rectangular LED blue warning strobe lights mounted on rear roof |
| All materials without wooden components |
| Hands-free intercom system between medical compartment and driving cab |
| 4 pcs of 220V vehicle-dedicated sockets fitted in medical compartment |
| 2 pcs of 12V vehicle-dedicated sockets fitted in medical compartment |
| 2 sets of 12V energy-saving 2-level dimmable LED ceiling lights in medical cabin |
| 3 pieces of rotatable spotlights |
| 1 cold cathode UV germicidal lamp for disinfection |
| Independent air conditioning system for medical compartment |
| Heavy-duty heater fitted in medical cabin |
| 1 set of ventilation system for medical compartment |
| Openable glass window on side door of medical compartment, half opaque film pasted on window |

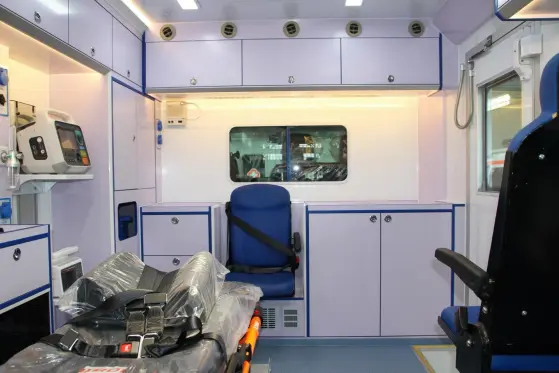

| Partition wall separates driving cab and medical compartment, equipped with a transparent sliding window |
| 1 rear-facing foldable seat with safety belt behind partition wall |
| Bench seat with safety belt installed on the right side of medical compartment |

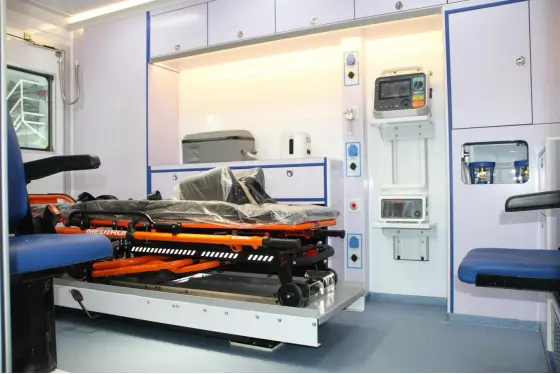

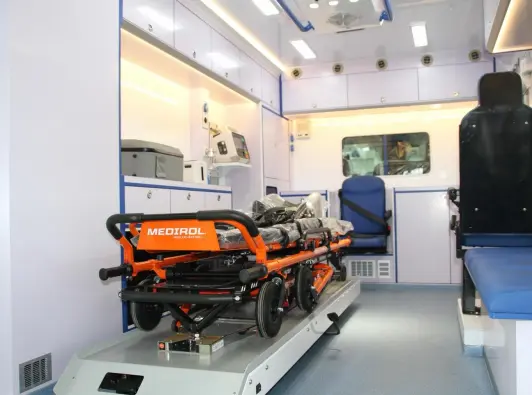

| ★Medical Cabin Interior The medical compartment is fitted with one-step vacuum blister molded interior panels to prevent deformation and mildew. The floor is made of blue-gray acid-resistant, alkali-resistant, fireproof and anti-slip material, with raised wrapped edges around the perimeter to prevent dust accumulation, enhance anti-slip performance and allow easy washing and flushing. Folded transition corner wraps are adopted to avoid collision injuries. (No carpets, fabric coverings or fiber materials shall be used for all interior parts of the medical compartment; the material is non-fiberglass.) |
| The fire resistance of vehicle interior trim materials shall comply with GB 8410-2006 Combustion Characteristics of Automobile Interior Trim Materials. |
| A combined cabinet set consisting of medicine cabinet and instrument cabinet is installed on the left side of the medical compartment. |
| Left-side equipment cabinet (for installing ECG monitor defibrillator, suction unit and ventilator) |
| One lidded medical waste bin is mounted on the right side of the medical compartment. |
| Two 10-liter oxygen cylinders with storage cabinet are installed at the rear left of the medical compartment, equipped with a manual oxygen changeover valve for quick switching between the two cylinders during operation. |
| Circular safety handrail mounted on the ceiling of the medical compartment |
| 2 sets of foldable IV infusion bottle hanging brackets fitted on the medical cabin ceiling. |
| 2 sets of 2kg fire extinguishers with mounting brackets. |
| Red decorative stripes are affixed to the waistline and top of the vehicle body. |
| 1 set of domestic automatic ambulance stretcher base. |
| 1 set of domestic automatic loading ambulance stretcher trolley |
| Note: The whole medical cabin is completely free of wood materials for all components, constructed entirely with waterproof, anti-corrosive and flame-retardant materials. |
