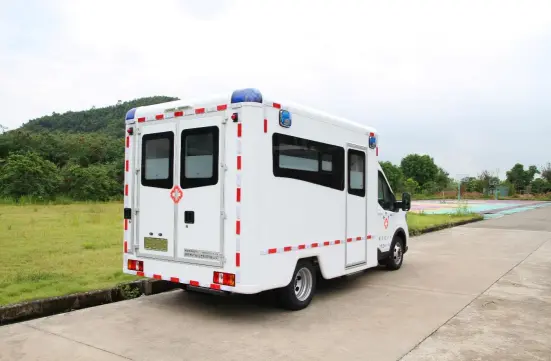

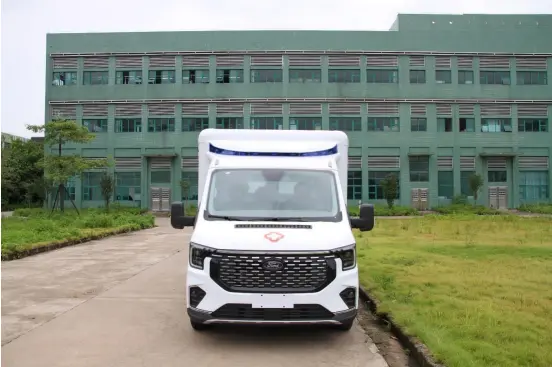

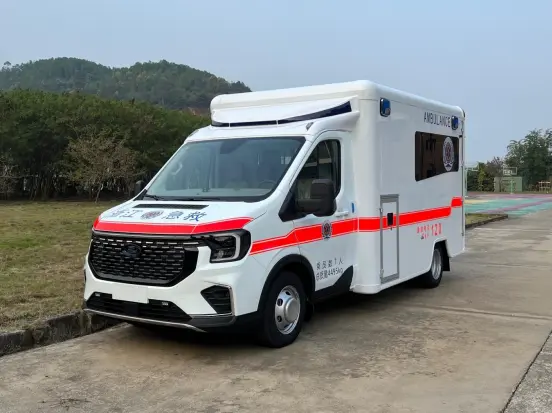

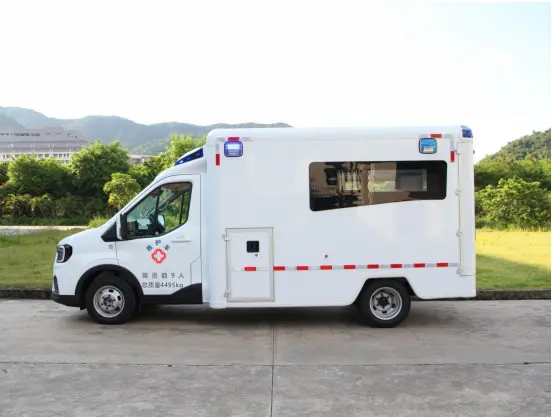

| Transit T8 Box-type Ambulance |
| Vehicle Technical Parameters and Configuration |
| Model:Ford Transit T8 Class 2 Chassis |
| Seats:7–9 |
| Total mass(kg):4495 |
| Wheelbase(mm):3750 |
| Front track(mm):1740 |
| Rear track(mm):1750 |
| Approach angle/departure angle:20/16 |
| Transmission:Manual |
| Dimension(mm):5998×2340×2800 |
| Medical cabin size(mm):3500×2200×1900 |
| Steering:Hydraulic Pump Power Steering |
| Front Suspension:MacPherson Independent Suspension |
| Rear Suspension:Hotchkiss Suspension |
| Braking System:Front Ventilated Disc Brakes, Rear Solid Disc Brakes |
| Tire Spec:195/75R16C |
| Engine:DURATORQ4D236H Diesel Engine |
| Emission Standard:China National VI b |
| Displacement (L):2.296 |
| Max Power (kW):128 |
| Max Torque (N・m):430 |
| Max Speed (km/h):155 |
| Electronic Stability Program (ESP 9.3) |
| Anti-lock Braking System (ABS) |
| Cruise Control System |

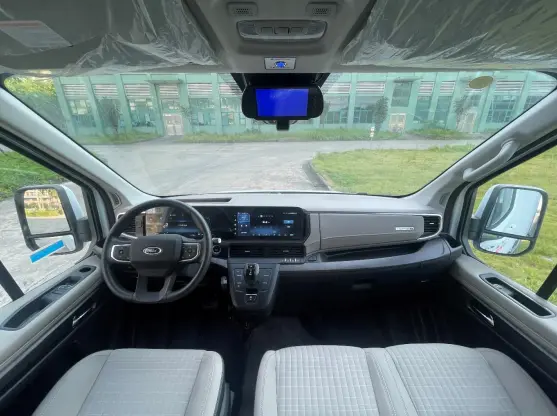

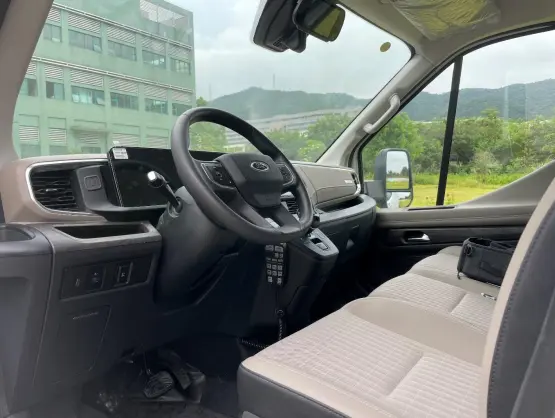

| 3-Seat Cabin Layout |
| Driver & Front Passenger Airbags |
| Factory Remote Central Locking System |
| Integrated On-board Navigation System with Rearview Camera |
| Power Windows / Power Heated Side Mirrors |
| Factory 5kW Automatic Air Conditioning for Cabin |
| Exterior Body: Markings and lettering applied in accordance with ambulance standard requirements. |
| Standard Vehicle Configuration |
| ▲Equipped with a dual-circuit fully automatic switching pure sine wave inverter, forming an independent dual-circuit 220V pure sine wave inverter power supply system with an output power of 1000W per circuit. The two circuits supply power independently; in case of a fault on either circuit, the other one will automatically switch on to ensure uninterrupted power supply for special-purpose equipment. It supports fully automatic switching between inverter power and municipal grid power to realize uninterrupted AC power supply, as well as dual-circuit four-stage charging function. Fitted with independent switches, it is equipped with comprehensive protection devices against earthing fault, electric leakage, overload, over-temperature, short circuit, under-voltage and over-voltage. |
| 1 set of 10-meter mobile power cable with plug for 220V/15A external power socket |
| 1 piece of 220V/15A waterproof 3-pin flat external power socket with protective cover |

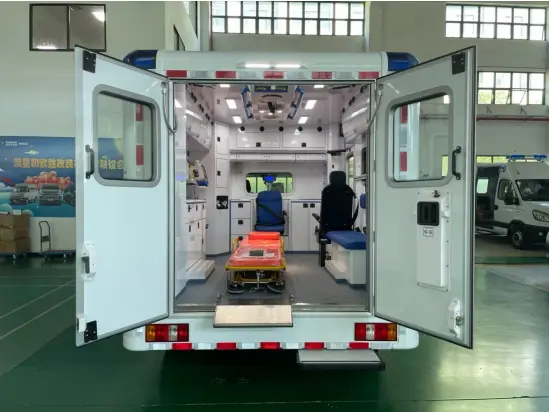

| Rear door foot step board, right-side electric running board |
| Emergency Warning System |
| The alarm & warning light main controller and control handle are installed inside the driver’s cabin. |
| 1 set of 100W external loudspeaker built into the alarm siren |
| Siren mounted on vehicle roof with 3 alarm tones: air horn, low tone and standard ambulance tone |
| ▲Interconnected system for alarm siren and vehicle horn with programmable control, which realizes efficient integrated control of siren and horn. When the switch on the control handle is pressed, the vehicle horn triggers short siren blasts, eliminating frequent direct operation of the alarm unit and greatly improving driving safety. When the handle switch is turned off, the horn reverts to its original factory setting for flexible mode switching. |
| 1 set of embedded warning light mounted on the front roof. |
| 2 sets of integrated LED emergency scene lighting & strobe lights installed at the rear of both vehicle sides |
| 1 set of embedded LED strobe light mounted on the rear body. |

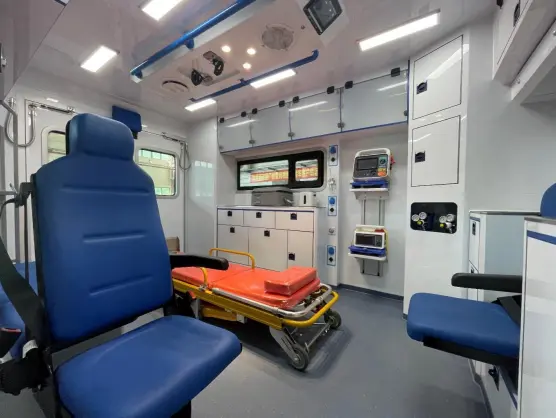

| Medical Compartment Internal Equipment(All materials contain no wood components) |
| ▲The overall walls and ceiling of the medical compartment are equipped with sound insulation and thermal insulation layers. Structural reinforcement is applied at all fixing points for seats, countertops and equipment, and structural reinforcement drawings of the medical compartment are provided. |
| ▲Lightweight fully enclosed medical cabin with all-aluminum structure; laminated aluminum alloy windows; independent outward-opening storage compartments. The adopted aluminum alloy material meets the requirement that the content of Cu, Zn, Mn, Cr, Ti each ≤0.03%, salt spray corrosion resistance protection grade ≥ Level 9, wear resistance ≥330g/μm |
| Intercom system between medical compartment and driver’s cabin. The two spaces are separated independently, with a slidable transparent window in the middle of the partition wall. |
| 6 sets of 220V special vehicle sockets installed in the medical compartment |
| 3 sets of 12V special vehicle sockets installed in the medical compartment |
| 2 groups of 12V energy-saving two-stage dimmable LED lights inside the medical compartment |
| 3 pcs of rotatable spotlights |
| 1 pc of cold cathode ultraviolet germicidal lamp for disinfection |
| Original factory independent air conditioner for medical compartment |
| Heavy-duty heater installed in medical compartment |
| 1 set of ventilation system fitted in medical compartment |
| ▲One electric sliding door is arranged on the right side of the medical compartment, controllable from both driver’s cabin and medical compartment for easy boarding and alighting |
| Glass windows are fitted on the right side of the compartment body and the rear door, with 1/2 opaque film pasted on the window surface. |
| 1 patient stretcher seat with safety belt and under-seat storage space is installed on the right side of the medical compartment. A foldable special head-supporting seat with safety belt is mounted at the front end of the stretcher seat. |
| ▲The medical compartment floor is laid with high-quality blue acid & alkali resistant, fireproof and anti-slip flooring. The perimeter is wrapped with raised edging to prevent dust accumulation, improve anti-slip performance and allow direct water flushing. Illuminated skirting boards are installed to serve as warning markers and provide local lighting for the compartment floor. |
| The fire resistance performance of vehicle interior trim shall comply with GB8410-2006 *Combustion Characteristics of Automotive Interior Materials |

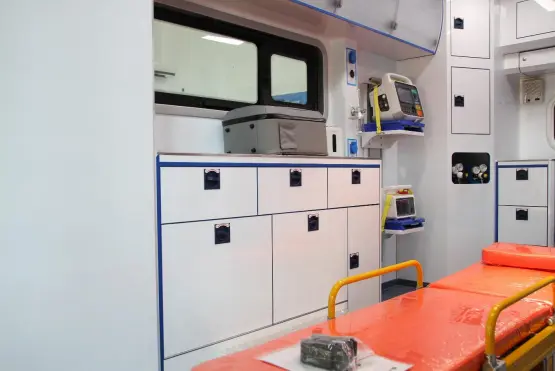

| ▲One set of combined medicine cabinet and instrument cabinet is installed in the medical compartment (for housing ECG monitor, defibrillator, suction unit and ventilator). Aluminum alloy structural members are adopted for equipment fixing rails; the cabinet body adopts a sandwich structure combining PVC panels and aluminum strips, featuring wear resistance, glossy surface and easy cleaning. The adopted aluminum alloy material meets the standard: the content of Cu, Zn, Mn, Cr, Ti each ≤0.03%, salt spray corrosion resistance grade ≥ Level 9, wear resistance ≥330g/μm. |
| 2 pcs of 10L oxygen cylinders equipped with a manual changeover switch, fixed inside the rescue compartment by brackets for easy replacement. Built-in oxygen supply pipeline: one end connects to the oxygen cylinder, the other end links to a fixed oxygen supply connector for ventilator connection |
| One lidded waste bin mounted on the right side of the medical compartment. |

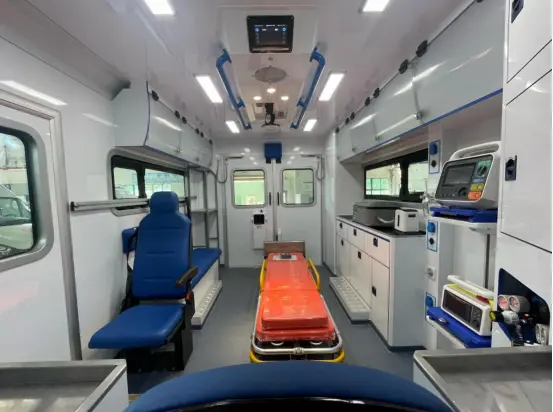

| ▲A central integrated platform is installed on the ceiling of the medical compartment, integrating circular UV disinfection lamp, spotlights, foldable IV bottle hanging device (4 hooks in total), overhead ventilation fan and safety handrails on both sides. A touch control system is embedded at the front, which can control interior & exterior lights and display real-time data including cabin temperature, humidity and power supply voltage. The air conditioning and ventilation systems data can be displayed simultaneously. |
| 2 safety handrails installed on the medical compartment ceiling |
| 2 sets of foldable IV fluid hanging devices mounted on the ceiling |
| 2 sets of 2kg fire extinguishers with supporting brackets |
| Red decorative tapes affixed on the waist and top positions of the vehicle body |
| 1 set of customized slidable loading stretcher platform (left-right sliding available) |
| 1 set of automatic loading stretcher |
| 1 set of scoop stretcher |
| 1 set of spinal board |
| Note: （1）The whole medical cabin is completely free of wood materials for all components, constructed entirely with waterproof, anti-corrosive and flame-retardant materials. （2）In addition, the layout design and construction of the medical compartment can be carried out in accordance with customer’s requirements. |
